Folder Templates
Make folder artwork faster and simpler with 11 free downloadable folder templates. These ready-to-use layouts cover a range of popular styles, including capacity and non-capacity folders, self-locking pockets and glued pockets. It means you can start designing your folders with confidence, reduce turnaround times and save the cost of having a die made.
Find out more about our folder printing service here, and explore our templates below.

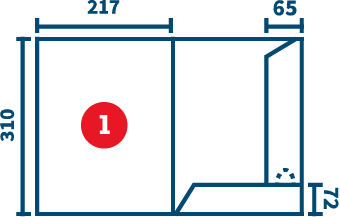

Folder 1
Fits in a C4 envelope (229 x 324mm)
Folder 1 measures 310mm deep and 217mm wide. It has no capacity and is an ideal general folder. It is self-locking and therefore requires no glue.
Folder 2
May fit a standard C4 envelope, but would be a tight fit. C4 pocket gusset envlelope recommended (324 x 229 x 25mm).
Folder 2 measures 305mm deep and 220mm wide. It has a 6mm capacity and is useful for holding larger amounts of documents or booklets. Self-locking.

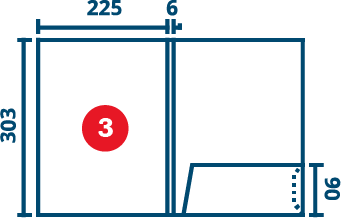

Folder 3
Does NOT fit in C4 envelope. Would require a 279 x 330mm envelope, incurring the small parcel postage tariff.
Folder 3 measures 303mm deep and 225mm wide. It has a 6mm capacity but only one pocket. It has a glue assembly mechanism through one tab.

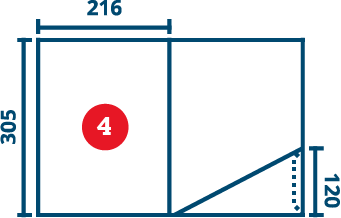

Folder 4
Fits in a C4 envelope 229 x 324mm.
Folder 4 measures 305mm deep and 216mm wide. It is unusual in having a triangular shaped pocket. It has one glue tab for assembly.

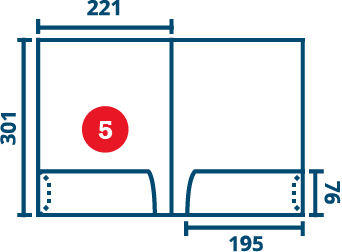

Folder 5
May fit a standard C4 envelope, but would be a tight fit. C4 pocket gusset envlelope recommended (324 x 229 x 25mm).
Folder 5 measures 301mm deep and 221mm wide. It’s symmetrical in design, having pockets on both sides. An ideal corporate folder for clients with lots of material.

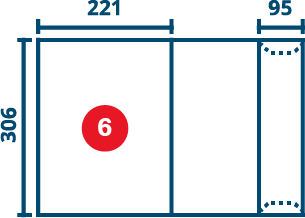

Folder 6
May fit a standard C4 envelope, but would be a tight fit. C4 pocket gusset envlelope recommended (324 x 229 x 25mm).
Folder 6 measures 306mm deep and 221mm wide. It has a pocket on one side, glued at the top and at the bottom. Note that due to the design of this folder, it can be rotated so that the 95mm flap is on either side.

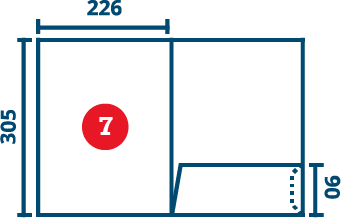

Folder 7
Does NOT fit in C4 envelope. Would require a 279 x 330mm envelope, incurring the small parcel postage tariff.
Folder 7 measures 305mm deep and 226mm wide. It has no capacity and only one pocket. It has a glue assembly mechanism through one tab.

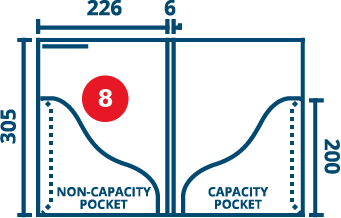

Folder 8
Does NOT fit in C4 envelope. Would require a 279 x 330mm envelope, incurring the small parcel postage tariff.
Folder 8 measures 305mm deep and 226mm wide, plus 6mm capacity. Created with double pockets this folder is perfect for holding larger amounts of documents, booklets and data sheets. The height of both pockets has been specifically designed to accommodate both landscape and portrait business card slits.
Folder 9
Fits in a C4 envelope (229 x 324mm)
Folder 9 measures 305mm deep and 215mm wide. It has no capacity and only one pocket. It has a glue assembly mechanism through one tab.

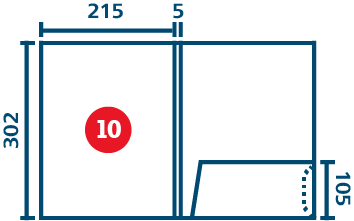

Folder 10
Fits in a C4 envelope (229 x 324mm)
Folder 10 measures 302mm deep and 215mm wide. It has a capacity of 5mm and one pocket that is assembled with a single glue tab.

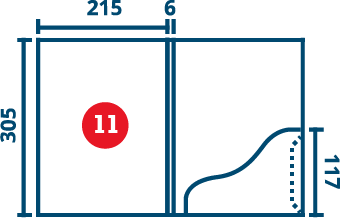

Folder 11
May fit a standard C4 envelope, but would be a tight fit. C4 pocket gusset envlelope recommended (324 x 229 x 25mm).
If you like Folder 9’s curves but need a bit more space for your inserts, then our capacity version (Folder L) measuring 305mm deep and 215mm wide, with a 6mm spine, could be what you’re looking for. It has a 6mm pocket and glue assembly through one tab.
